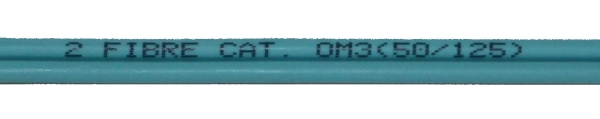

The fibre is a graded refractive index multimode fibre optimised for 10 Gb/s transmission speeds. It has a 50 micron core and a 125 micron cladding diameter. The fibre is designed for use at 850nm wavelength, but can also be used at 1300nm. Two 2.8mm tightly buffered fibres with a LSZH fire retardant, UV stabilised jacket to form a multipurpose zipcord. The Standard Jacket Colour is Aqua but other colours are available on request

Optical Properties

Atenuation:
At 850nm: <=3.0dB/km(Typically 2.5)
At 1300nm: <=1.0dB/km(Typically 0.7)

Bandwidth
Effective Modal Bandwidth: >=2000MHz.km

We have stocks of all of these connectors and can make up any length you require.
Standard Fibre Colour is Aqua and Red is also available.
We can label both ends Free of Charge
